Signals Position API

Overview

The Signals Position API allows users to start a trading position with specified configurations. When a POST request is sent to this API, it initiates the trade, with order management handled on our side. Users can specify various parameters such as stop loss, target, and execution configurations.

This page documents every field and every value each field can take in the request payload, so you can build the exact strategy you want without guessing.

Endpoint

Live URL: https://api.algotest.in/webhook/custom-position/execution/start/live?broker_id={broker_id}

Paper (Forward Testing) URL: https://api.algotest.in/webhook/custom-position/execution/start/paper

Method: POST

Request URL Parameters:

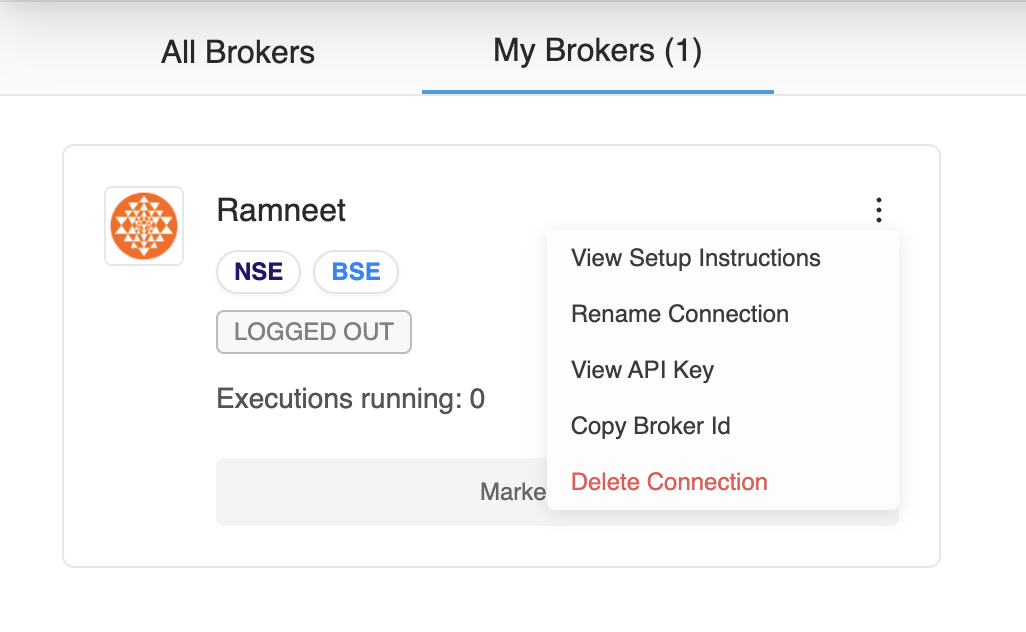

broker_id : The broker id on which you want to trade the position. Copy it from the "Broker Setup" page. Required for the live URL, ignored for paper.

Request Body

The request body should be in JSON format and include the following main components:

Field	Type	Required	Description

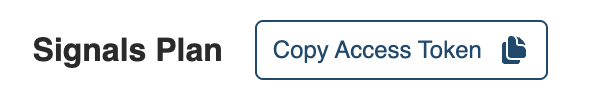

`access_token`	string	Yes	The access token for authentication. Copy it from the profile page.
`alert_name`	string	Yes	The name of the alert triggering the strategy. Shown in your execution history.
`exit_time`	string (`YYYY-MM-DDTHH:MM:SS`, IST)	Yes	The scheduled exit time of the strategy. Must not be in the past — a past timestamp is rejected with `400`.
`strategy`	object	Yes	The strategy configuration object — see below.

Market hours

Strategies can only be activated during exchange trading hours (approximately 08:15 – 15:39 IST for NSE/BSE tickers). Sending a valid request outside this window returns a 503.

Strategy Object

Within the strategy object, the following fields are defined:

Field	Type	Required	Description
`Ticker`	string	Yes	The underlying index, stock, or crypto instrument. See Ticker values below.
`Legs`	array (1–10 items)	Yes	Array of legs, each containing `PositionConfig` and `ExecutionConfig`.
`OverallSL`	object	No	Overall Stop Loss configuration across all legs combined. Defaults to no SL if omitted.
`OverallTgt`	object	No	Overall Target configuration across all legs combined. Defaults to no target if omitted.

Ticker

Ticker accepts one instrument identifier from AlgoTest's supported universe:

Indices: NIFTY, BANKNIFTY, FINNIFTY, MIDCPNIFTY, SENSEX, BANKEX
NSE Stocks: any NIFTY-500 stock, prefixed with NSE_ (e.g. NSE_RELIANCE, NSE_TATASTEEL, NSE_SBIN)
Delta Exchange crypto: DELTA_BTCUSD, DELTA_ETHUSD
Coinswitch crypto: COINSWITCH_BTCUSDT, COINSWITCH_ETHUSDT, COINSWITCH_SOLUSDT, COINSWITCH_XRPUSDT, COINSWITCH_DOGEUSDT

Primary tickers

NIFTY, SENSEX, and the Delta/Coinswitch crypto tickers above are treated as primary tickers. This matters for ExpiryKind — see the ExpiryKind table below. Every other ticker (BANKNIFTY, FINNIFTY, MIDCPNIFTY, BANKEX, and all individual stocks) is restricted to monthly expiries only.

OverallSL / OverallTgt

Both use the same { "Type": ..., "Value": ... } shape:

`Type`	Meaning	`Value`
`"None"`	No overall SL / Target (default if the field is omitted entirely).	Must be exactly `0`.
`OverallTgtSLType.MTM`	Absolute mark-to-market P&L, in ₹ (or the underlying's currency), summed across all legs.	number, `>= 1`
`OverallTgtSLType.PremiumPercentage`	% move of the total combined premium across all legs.	number, `>= 1`

{
    "OverallSL": {
        "Type": "OverallTgtSLType.MTM",
        "Value": 3000
    }
}

Legs

Each element in the Legs array represents a specific position and how it should be executed, defined by:

PositionConfig
ExecutionConfig

1. PositionConfig

Defines the position details such as instrument type, strike price, expiry, position type, lot size, and stop loss/target configurations. All fields below are required inside PositionConfig.

{
    "PositionConfig": {
        "EntryType" : "EntryType.EntryByExactStrike",
        "InstrumentKind": "LegType.CE",
        "StrikeParameter": 23850,
        "ExpiryKind": "ExpiryType.Weekly",
        "PositionType": "PositionType.Sell",
        "Lots": 1,
        "LegStopLoss": {
            "Type": "None",
            "Value": 0
        },
        "LegTarget": {
            "Type": "None",
            "Value": 0
        },
        "LegTrailSL": {
            "Type": "None",
            "Value": {}
        }
    }
}

InstrumentKind

Value	Meaning	Constraints
`LegType.CE`	Call option	—
`LegType.PE`	Put option	—
`LegType.FUT`	Futures contract	Not available on Delta/Coinswitch (crypto) tickers — rejected with "Futures/Spot is not supported for Delta/Coinswitch Exchange".
`LegType.CASH`	Cash/equity leg — buys or sells the underlying stock directly	Only allowed when `Ticker` is an individual stock (an `NSE_*` ticker). Rejected for indices and crypto tickers.

No perpetual futures via this webhook

AlgoTest's execution engine supports a LegType.FUT_P (perpetual futures) instrument kind for Delta/Coinswitch, but this specific custom-position / custom-signal webhook does not accept it — InstrumentKind is limited to CE, PE, FUT, CASH at the API layer. In practice, this means crypto strategies sent through this endpoint should use option legs (CE/PE) only, since FUT and CASH are both rejected for Delta/Coinswitch tickers and FUT_P isn't reachable here.

For Futures (LegType.FUT) or Cash (LegType.CASH) legs, there is no strike to select — set:

"EntryType": "None",
"StrikeParameter": "None"

EntryType

EntryType controls how AlgoTest picks the strike, and it determines the required shape of StrikeParameter. This is the field with the most variation, so the table below lists every value together with the exact StrikeParameter shape it expects.

`EntryType`	What it selects	`StrikeParameter` shape	Example
`EntryType.EntryByExactStrike`	An exact, literal strike price you specify.	`integer`	`23850`
`EntryType.EntryByStrikeType`	A strike relative to spot: at-the-money, or N strikes in/out of the money.	`string` — one of the StrikeType values	`"StrikeType.OTM5"`
`EntryType.EntryBySyntheticFuture`	Same relative strike selection as `EntryByStrikeType`, but the ATM reference is computed from the synthetic future (put-call parity) instead of raw spot.	`string` — one of the StrikeType values	`"StrikeType.ATM"`
`EntryType.EntryByAtmMultiplier`	A strike offset expressed as a multiplier of the ATM strike.	`number`, `0 < x < 2`	`1.02`
`EntryType.EntryByPremium`	The strike whose option premium is closest to a target value.	`number`, `x > 0`	`50`
`EntryType.EntryByPremiumGEQ`	The strike whose premium is closest to the target while staying greater than or equal to it.	`number`, `x > 0`	`50`
`EntryType.EntryByPremiumLEQ`	The strike whose premium is closest to the target while staying less than or equal to it.	`number`, `x > 0`	`50`
`EntryType.EntryByPremiumRange`	A strike whose premium falls within a range.	object: `{"LowerRange": number>0, "UpperRange": number>0}`	`{"LowerRange": 40, "UpperRange": 60}`
`EntryType.EntryByDelta`	The strike whose option delta is closest to a target value.	`number`, `x > 0`	`0.3`
`EntryType.EntryByDeltaRange`	A strike whose option delta falls within a range.	object: `{"LowerRange": number>0, "UpperRange": number>0}`	`{"LowerRange": 0.2, "UpperRange": 0.4}`
`EntryType.EntryByStraddlePrice`	Strike selected from an ATM straddle premium multiplied by a factor, then shifted up or down.	object: `{"Multiplier": number, "Adjustment": "AdjustmentType.Plus"\\|"AdjustmentType.Minus", "StrikeKind": <StrikeType value>}`	`{"Multiplier": 1, "Adjustment": "AdjustmentType.Plus", "StrikeKind": "StrikeType.ATM"}`
`EntryType.EntryByPremiumCloseToStraddle`	The strike whose own premium is closest to (straddle premium × multiplier).	object: `{"Multiplier": number, "StrikeKind": <StrikeType value>}`	`{"Multiplier": 0.5, "StrikeKind": "StrikeType.ATM"}`
`"None"`	No strike selection — used only for Futures/Cash legs.	string const `"None"`	Pair with `InstrumentKind: "LegType.FUT"` or `"LegType.CASH"`

StrikeType

Used both as the value of StrikeParameter (when EntryType is EntryByStrikeType / EntryBySyntheticFuture) and as the StrikeKind field inside the straddle-based entry types above:

Value	Meaning
`StrikeType.ATM`	At-the-money strike.
`StrikeType.ITM1` … `StrikeType.ITM20`	In-the-money, N strikes deep (1 to 20).
`StrikeType.OTM1` … `StrikeType.OTM30`	Out-of-the-money, N strikes deep (1 to 30).

AdjustmentType

Used only inside EntryType.EntryByStraddlePrice's StrikeParameter.Adjustment:

Value	Meaning
`AdjustmentType.Plus`	Shift the computed strike up from the straddle-based reference.
`AdjustmentType.Minus`	Shift the computed strike down from the straddle-based reference.

ExpiryKind

Value	Meaning	Constraints
`ExpiryType.Weekly`	Nearest weekly expiry.	Primary tickers only.
`ExpiryType.NextWeekly`	The weekly expiry after the nearest one.	Primary tickers only.
`ExpiryType.Monthly`	Nearest monthly expiry.	Available for all tickers.
`ExpiryType.NextMonthly`	The monthly expiry after the nearest one.	Available for all tickers.
`ExpiryType.Today`	Same-day expiry.	Delta/Coinswitch (crypto) tickers only.
`ExpiryType.Tomorrow`	Next-day expiry.	Delta/Coinswitch (crypto) tickers only.

Non-primary tickers are Monthly-only

For any ticker that isn't a primary ticker — i.e. BANKNIFTY, FINNIFTY, MIDCPNIFTY, BANKEX, or any individual stock — only ExpiryType.Monthly and ExpiryType.NextMonthly are accepted. Sending Weekly/NextWeekly for these is rejected with "Only Monthly expiries are supported for non-primary tickers".

PositionType

Value	Meaning
`PositionType.Buy`	Long / buy the leg.
`PositionType.Sell`	Short / sell (write) the leg.

Lots

integer, minimum 1. Number of lots to trade for this leg (multiplied by the underlying's exchange-defined lot size internally).

LegStopLoss / LegTarget

Both fields share the same { "Type": ..., "Value": ... } shape:

`Type`	Meaning	`Value`
`"None"`	No stop loss / target on this leg.	Must be exactly `0`.
`LegTgtSLType.Points`	Absolute price points on the leg's own premium.	number, `>= 1`
`LegTgtSLType.Percentage`	% move of the leg's own premium.	number, `>= 0`
`LegTgtSLType.UnderlyingPoints`	Absolute points move of the underlying (spot), rather than the option premium.	number, `>= 1`
`LegTgtSLType.UnderlyingPercentage`	% move of the underlying (spot).	number, `>= 0`

"LegStopLoss": { "Type": "LegTgtSLType.Percentage", "Value": 50 },
"LegTarget":   { "Type": "None", "Value": 0 }

LegTrailSL

Trailing stop loss for this leg. Shape:

`Type`	Meaning	`Value`
`"None"`	No trailing stop loss (default).	Must be exactly `{}`.
`TrailStopLossType.Points`	Trail the SL by absolute points as the instrument moves in your favor.	`{"InstrumentMove": number, "StopLossMove": number}`
`TrailStopLossType.Percentage`	Trail the SL by percentage.	`{"InstrumentMove": number, "StopLossMove": number}`

Value.InstrumentMove / Value.StopLossMove: for every InstrumentMove the instrument moves in your favor, the stop loss is trailed by StopLossMove in the same direction.

"LegTrailSL": {
    "Type": "TrailStopLossType.Points",
    "Value": { "InstrumentMove": 10, "StopLossMove": 5 }
}

2. ExecutionConfig

Defines the execution details such as product type, entry/exit order configurations, and reference for stop loss/target calculations. Every field in ExecutionConfig is optional — omitted fields fall back to their defaults below.

{
    "ExecutionConfig": {
        "ProductType": "ProductType.NRML",
        "ReferenceForTgtSL": "PriceReferenceType.Trigger",
        "EntryOrder": {
            "Type": "OrderType.Limit",
            "Value": {
                "Buffer": {
                    "Type": "BufferType.Points",
                    "Value": { "TriggerBuffer": 0, "LimitBuffer": 3 }
                },
                "Modification": { "MarketOrderAfter": 1 }
            }
        },
        "ExitOrder": {
            "Type": "OrderType.Limit",
            "Value": {
                "Buffer": {
                    "Type": "BufferType.Points",
                    "Value": { "TriggerBuffer": 0, "LimitBuffer": 3 }
                },
                "Modification": { "MarketOrderAfter": 1 }
            }
        },
        "EntryDelay": 0
    }
}

ProductType

Value	Meaning
`ProductType.NRML`	Normal / carry-forward margin product. Default if omitted.
`ProductType.MIS`	Intraday margin product — higher leverage, broker auto-square-off before close.
`ProductType.CNC`	Cash & Carry — delivery-based; applies to cash/equity legs.

ReferenceForTgtSL

Value	Meaning
`PriceReferenceType.Trigger`	SL/Target are computed from the price at which the entry order was triggered.
`PriceReferenceType.Trade`	SL/Target are computed from the actual filled/traded price. Default if omitted.

EntryOrder / ExitOrder

Both fields use the same OrderType structure and accept one of three variants:

MarketLimitMPP

{ "Type": "OrderType.Market", "Value": {} }

Value must be an empty object — Market orders cannot carry a Buffer or Modification.

Warning

Rejected on NSE/BSE tickers (all indices and stocks) with "Market order has been disabled by the exchange. Update to Limit to continue." Use Limit or MPP there instead. Market orders work normally on Delta/Coinswitch (crypto) tickers.

{
    "Type": "OrderType.Limit",
    "Value": {
        "Buffer": {
            "Type": "BufferType.Points",
            "Value": { "TriggerBuffer": 0, "LimitBuffer": 3 }
        },
        "Modification": {
            "MarketOrderAfter": 1
        }
    }
}

Value.Buffer:

Field	Type	Meaning
`Type`	`BufferType.Points` or `BufferType.Percentage`	Whether the buffer values below are absolute points or a percentage of price.
`Value.TriggerBuffer`	number	Offset applied to compute the order's trigger price.
`Value.LimitBuffer`	number	Offset applied to compute the order's limit price.

Value.Modification:

Field	Type	Required	Meaning
`MarketOrderAfter`	integer, `0`–`40`	Yes	Number of repricing attempts before AlgoTest converts the unfilled limit order to a market order.

MarketOrderAfter is exchange-dependent

MarketOrderAfter is only honored on Delta/Coinswitch (crypto) tickers.

{ "Type": "OrderType.MPP", "Value": {} }

Value must be an empty object. MPP ("Market Protection Price") is the NSE/BSE substitute for a real market order — a protected order type used where exchanges don't support true market orders.

Warning

Rejected on Delta/Coinswitch tickers with "MPP order is not supported for this exchange. Update to Limit/Market to continue." Use Market there instead.

Tip

If EntryOrder / ExitOrder is omitted entirely, AlgoTest falls back to its internal default order handling. For predictable behavior, always specify both explicitly.

EntryDelay

integer, 0–50 (seconds). Delay applied before placing the order. Optional, default 0. Note: this single value is applied to both the entry and the exit order of the leg — there's no separate delay field per order.

Additional Configurations

Putting it together, a Limit order buffer/modification block commonly looks like:

Buffer using BufferType.Points or BufferType.Percentage to offset the trigger/limit price from the reference price.
Modification using MarketOrderAfter to convert an unfilled limit order to a market order after N repricing attempts (remember: only effective on Delta/Coinswitch).

Validation Rules & Gotchas

A quick-reference checklist of things that will get a request rejected — worth skimming before you go live:

1–10 legs per strategy (Legs array length).
exit_time must not be in the past, and the request must arrive within exchange trading hours.
Non-primary tickers (BANKNIFTY, FINNIFTY, MIDCPNIFTY, BANKEX, all stocks) only accept ExpiryType.Monthly / ExpiryType.NextMonthly.
ExpiryType.Today / ExpiryType.Tomorrow are Delta/Coinswitch-only.
InstrumentKind: "LegType.CASH" is only valid when Ticker is an individual stock.
InstrumentKind: "LegType.FUT" is rejected on Delta/Coinswitch tickers — and this webhook has no reachable substitute for it there (see the InstrumentKind note above).
OrderType.Market is rejected on NSE/BSE tickers; OrderType.MPP is rejected on Delta/Coinswitch tickers.
Modification.MarketOrderAfter only takes effect on Delta/Coinswitch tickers.
For Futures/Cash legs, set both EntryType and StrikeParameter to the string "None".

Example Request

Below is a minimal example that demonstrates a strategy on NIFTY with two short option legs and an overall MTM stop loss of 3000.

{
    "access_token": "your-access-token",
    "alert_name": "custom_strategy",
    "exit_time": "2025-11-29T15:15:00",
    "strategy": {
    "Ticker": "NIFTY",
    "Legs": [
        {
        "PositionConfig": {
            "EntryType" : "EntryType.EntryByExactStrike",
            "InstrumentKind": "LegType.CE",
            "StrikeParameter": 23850,
            "ExpiryKind": "ExpiryType.Weekly",
            "PositionType": "PositionType.Sell",
            "Lots": 1,
            "LegStopLoss": { "Type": "None", "Value": 0 },
            "LegTarget": { "Type": "None", "Value": 0 },
            "LegTrailSL": { "Type": "None", "Value": {} }
        },
        "ExecutionConfig": {
            "ProductType": "ProductType.NRML",
            "ReferenceForTgtSL": "PriceReferenceType.Trigger",
            "EntryOrder": {
            "Type": "OrderType.Limit",
            "Value": {
                "Buffer": {
                "Type": "BufferType.Points",
                "Value": {
                    "TriggerBuffer": 0,
                    "LimitBuffer": 3
                }
                },
                "Modification": {
                "MarketOrderAfter": 1
                }
            }
            },
            "ExitOrder": {
            "Type": "OrderType.Limit",
            "Value": {
                "Buffer": {
                "Type": "BufferType.Points",
                "Value": {
                    "TriggerBuffer": 0,
                    "LimitBuffer": 3
                }
                },
                "Modification": {
                "MarketOrderAfter": 1
                }
            }
            }
        }
        },
        {
        "PositionConfig": {
            "EntryType" : "EntryType.EntryByExactStrike",
            "InstrumentKind": "LegType.PE",
            "StrikeParameter": 23350,
            "ExpiryKind": "ExpiryType.Weekly",
            "PositionType": "PositionType.Sell",
            "Lots": 1,
            "LegStopLoss": { "Type": "None", "Value": 0 },
            "LegTarget": { "Type": "None", "Value": 0 },
            "LegTrailSL": { "Type": "None", "Value": {} }
        },
        "ExecutionConfig": {
            "ProductType": "ProductType.NRML",
            "ReferenceForTgtSL": "PriceReferenceType.Trigger",
            "EntryOrder": {
            "Type": "OrderType.Limit",
            "Value": {
                "Buffer": {
                "Type": "BufferType.Points",
                "Value": {
                    "TriggerBuffer": 0,
                    "LimitBuffer": 3
                }
                },
                "Modification": {
                "MarketOrderAfter": 1
                }
            }
            },
            "ExitOrder": {
            "Type": "OrderType.Limit",
            "Value": {
                "Buffer": {
                "Type": "BufferType.Points",
                "Value": {
                    "TriggerBuffer": 0,
                    "LimitBuffer": 3
                }
                },
                "Modification": {
                "MarketOrderAfter": 1
                }
            }
            }
        }
        }
    ],
    "OverallSL": {
        "Type": "OverallTgtSLType.MTM",
        "Value": 3000
    }
    }
}

Here's a second example showing a relative strike (ATM) entry with an MPP order — an ATM straddle sell on SENSEX with a 50% per-leg stop loss:

{
    "access_token": "your-access-token",
    "alert_name": "atm_straddle_sell",
    "exit_time": "2025-11-29T15:15:00",
    "strategy": {
        "Ticker": "SENSEX",
        "Legs": [
            {
                "PositionConfig": {
                    "EntryType": "EntryType.EntryByStrikeType",
                    "InstrumentKind": "LegType.CE",
                    "StrikeParameter": "StrikeType.ATM",
                    "ExpiryKind": "ExpiryType.Weekly",
                    "PositionType": "PositionType.Sell",
                    "Lots": 2,
                    "LegStopLoss": { "Type": "LegTgtSLType.Percentage", "Value": 50 },
                    "LegTarget": { "Type": "None", "Value": 0 },
                    "LegTrailSL": { "Type": "None", "Value": {} }
                },
                "ExecutionConfig": {
                    "ProductType": "ProductType.NRML",
                    "ReferenceForTgtSL": "PriceReferenceType.Trade",
                    "EntryOrder": { "Type": "OrderType.MPP", "Value": {} },
                    "ExitOrder": { "Type": "OrderType.MPP", "Value": {} }
                }
            },
            {
                "PositionConfig": {
                    "EntryType": "EntryType.EntryByStrikeType",
                    "InstrumentKind": "LegType.PE",
                    "StrikeParameter": "StrikeType.ATM",
                    "ExpiryKind": "ExpiryType.Weekly",
                    "PositionType": "PositionType.Sell",
                    "Lots": 2,
                    "LegStopLoss": { "Type": "LegTgtSLType.Percentage", "Value": 50 },
                    "LegTarget": { "Type": "None", "Value": 0 },
                    "LegTrailSL": { "Type": "None", "Value": {} }
                },
                "ExecutionConfig": {
                    "ProductType": "ProductType.NRML",
                    "ReferenceForTgtSL": "PriceReferenceType.Trade",
                    "EntryOrder": { "Type": "OrderType.MPP", "Value": {} },
                    "ExitOrder": { "Type": "OrderType.MPP", "Value": {} }
                }
            }
        ]
    }
}

Response Examples

200 - Success

{
    "id": "6788c4fb6be04cb2210e9c10"
}

503 - Service Unavailable

{
    "msg": "You can only activate strategies during 08:15 IST to 15:39 IST on trading days"
}

API Documentation: Signals API Square-Off

Overview

This API allows users to stop a running position. By sending a POST request to the endpoint with the position ID, you can specify the access token to square off the position.

Endpoint

URL: https://api.algotest.in/webhook/custom-position/execution/square-off/{position_id}

Method: POST

Request Body

The request body should be in JSON format and include the following main components:

access_token: Your API access token.

Example Request

{
    "access_token": "your-access-token"
}
